springcloud(十三)--断路器监控Turbine.Stream (原创)

本篇，我们在上一篇的基础上继续，搭建Turbine.stream（集群监控）

搭建sim-turbine服务工程：

1、pom.xml 中引入

 <dependency>
            <groupId>org.springframework.cloud</groupId>
            <artifactId>spring-cloud-starter-eureka</artifactId>
        </dependency>

         <dependency>
			<groupId>org.springframework.cloud</groupId>
			<artifactId>spring-cloud-starter-turbine</artifactId>
		</dependency>
		<dependency>
			<groupId>org.springframework.cloud</groupId>
			<artifactId>spring-cloud-netflix-turbine</artifactId>
		</dependency>
		<dependency>
			<groupId>org.springframework.boot</groupId>
			<artifactId>spring-boot-starter-actuator</artifactId>
		</dependency>

		<dependency>
			<groupId>org.springframework.boot</groupId>
			<artifactId>spring-boot-starter-test</artifactId>
			<scope>test</scope>
		</dependency>

server:
  port: 6030
  context-path: /


spring:

#spring应用名称  、实例id配置
  application:
    name: sim-turbine


eureka:
  instance:
    hostname: localhost  #eureka客户端主机实例名称
    prefer-ip-address: true
  client:
    service-url:
      defaultZone: http://localhost:8761/eureka

security.basic.enabled: false

turbine:
  aggregator:
    clusterConfig: default   # 指定聚合哪些集群，多个使用","分割，默认为default。可使用http://.../turbine.stream?cluster={clusterConfig之一}访问
  appConfig: sim-serviceD,sim-serviceE  ### 配置Eureka中的serviceId列表，表明监控哪些服务
  clusterNameExpression:  new String("default")

3、springboot启动类，标记@EnableTurbine注解

package com.tingcream.simTurbine;

import org.springframework.boot.SpringApplication;
import org.springframework.boot.autoconfigure.SpringBootApplication;
import org.springframework.cloud.netflix.eureka.EnableEurekaClient;
import org.springframework.cloud.netflix.turbine.EnableTurbine;
@SpringBootApplication
@EnableEurekaClient
@EnableTurbine
public class SimTurbineServer {

	public static void main(String[] args) {
		SpringApplication.run(SimTurbineServer.class, args);
	}

}

为了避免，hi这个断路器方法重名(sim-serviceD、sim-serviceE中都有)，我们修改下SimServiceEController.java

package com.tingcream.simServiceE.controller;

import org.springframework.web.bind.annotation.GetMapping;
import org.springframework.web.bind.annotation.RestController;

import com.netflix.hystrix.contrib.javanica.annotation.HystrixCommand;

@RestController
public class SimServiceEController {


	@GetMapping("/")
	public String index() {
		return "你好,我是sim-serviceE服务";
	}


	@HystrixCommand(fallbackMethod="hi_2_err")
	@GetMapping("/hi_2")
	public String hi_2(String name) {
		System.out.println("SimServiceEController  hi_2-------------");

		return "你好 "+name;
	}

	public String hi_2_err(String name) {
		return "sim-serviceE hi_2_err ： 抱歉，服务器连接失败，请稍候重试！ ";
	}
}

依次启动sim-eureka 、sim-turbine、sim-serviceE、sim-serviceD

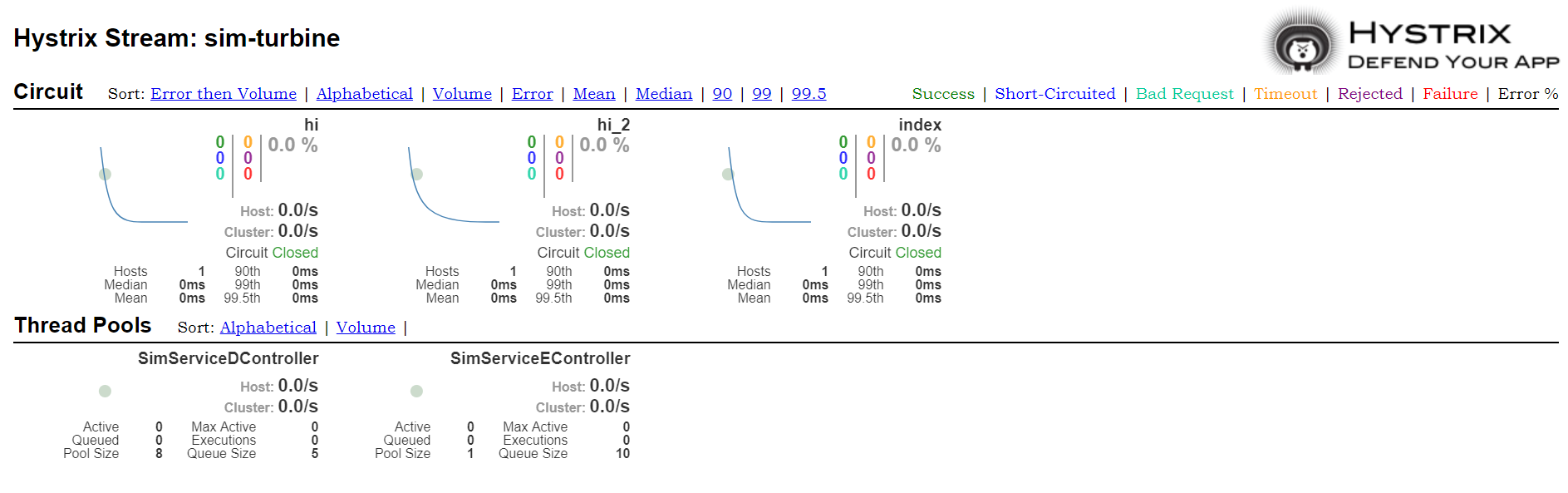

访问http://localhost:6006/hystrix ,

添加地址http://localhost:6030/turbine.stream ，title: sim-turbine  ,开始监控
